A STEM Project: A Moravian Star Model


A Moravian Star


I have always been fascinated by the look of the Moravian star. I love the way that the pyramids radiate from the center. I guess it appeals to my mathematical side.  In fact, the origin of this design originated as a geometry lesson in a Moravian Boys school in Niesky, Germany in the 1830's.  Students would make shapes out of paper and glue them together. The results were stellations or stars. This star was adopted by the Moravian Church as an advent symbol and is commonly used in nativity scenes to represent the star of Bethlehem. Traditionally, the star is hung the first Sunday of Advent and remains up until Epiphany, January 6, or the time of the coming of the Magi.

This Moravian star is a 26 point star. It has 18 large points and 8 small points. It is built on a base which is a rhombicuboctahedron. A rhombicuboctahedron is an Archimedean solid with eight triangular faces and eighteen square faces.

Here is the PDF file.  I used 65 lb. cardstock.
https://drive.google.com/file/d/1JolhWICmJxlC7aen1-CqpDvi4ZjM91Kr/view?usp=sharing

Here is the .Studio file.
https://drive.google.com/file/d/1ihzLN7tdll_koeN4tXdOisMcRKyJxAFp/view?usp=sharing

Fold the three strips of paper

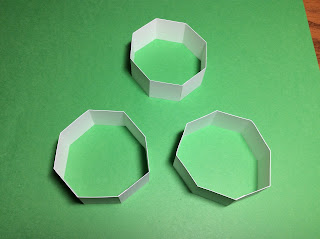

Glue them into an octagon.

Apply glue on the two opposite squares of one octagonal strip.  Slip the other octagonal strip over the glued area to form a structure as shown in the photo above.

Apply glue on the four middle squares as shown above.

Slide the third octagonal strip over the glued areas. This structure is now called a small rhombicuboctahedron

Fold the perforations of the small isoceles triangular pyramid. Apply glue on the left side which looks like a triangle.

Completed small isosceles triangular pyramid.  Repeat for the remaining isosceles triangular pyramids.

Bend the large isosceles pyramid and apply glue as shown.

Large isosceles pyramid.

Glue all of the large isooceles pyramids.  If you want to hang up your Moravian star, tape a string in the center of the large isosceles pyramid.

Glue the large isosceles pyramid closed and allow the string to protrude from the center apex of the pyramid.

Completed parts before final assembly.

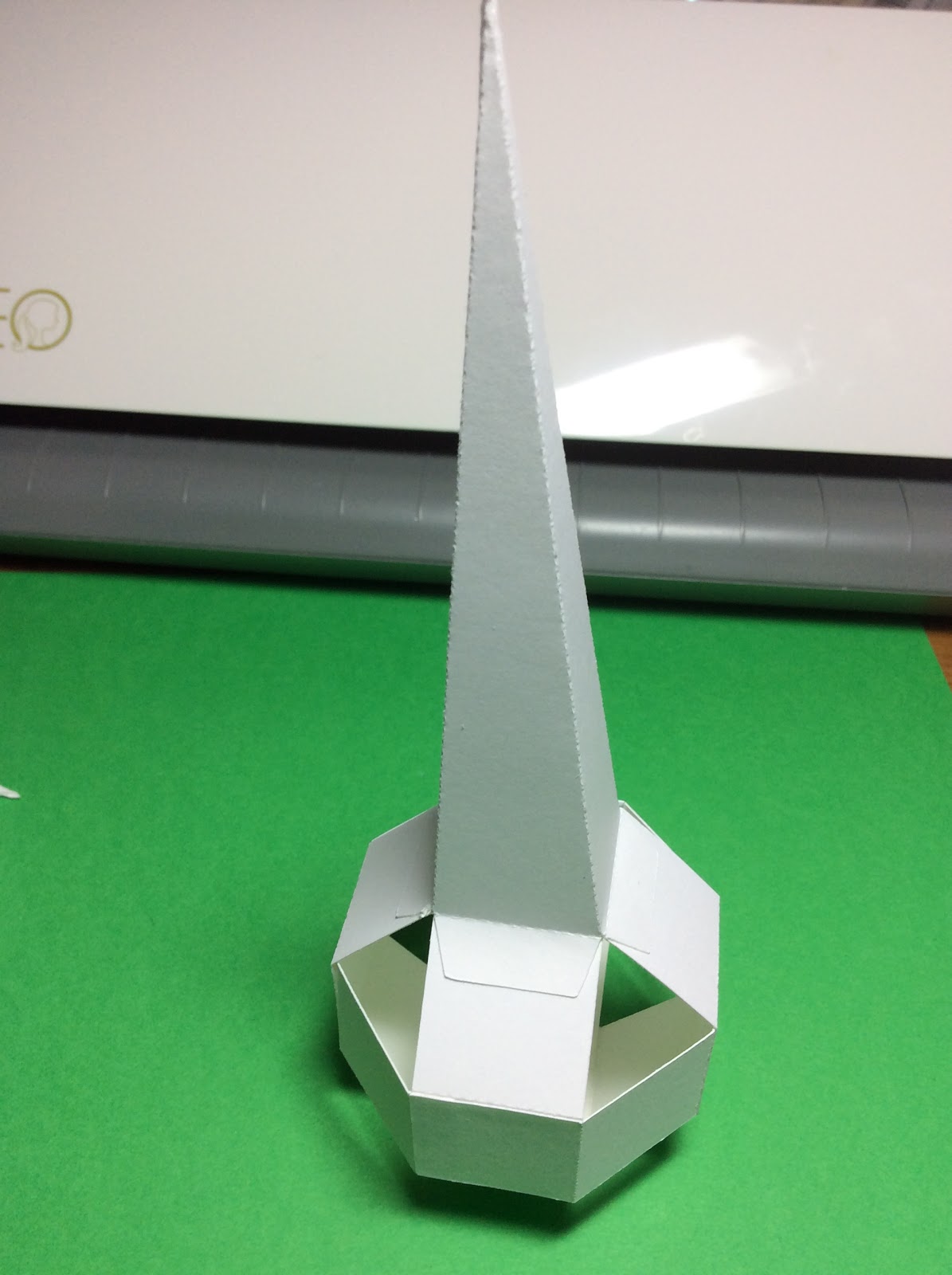

Glue the large isosceles pyramid to the top as shown with the tabs attached to the adjacent squares. Glue another large isosceles pyramid to the bottom.

Repeat gluing the large isosceles pyramids to the four cardinal points as shown.

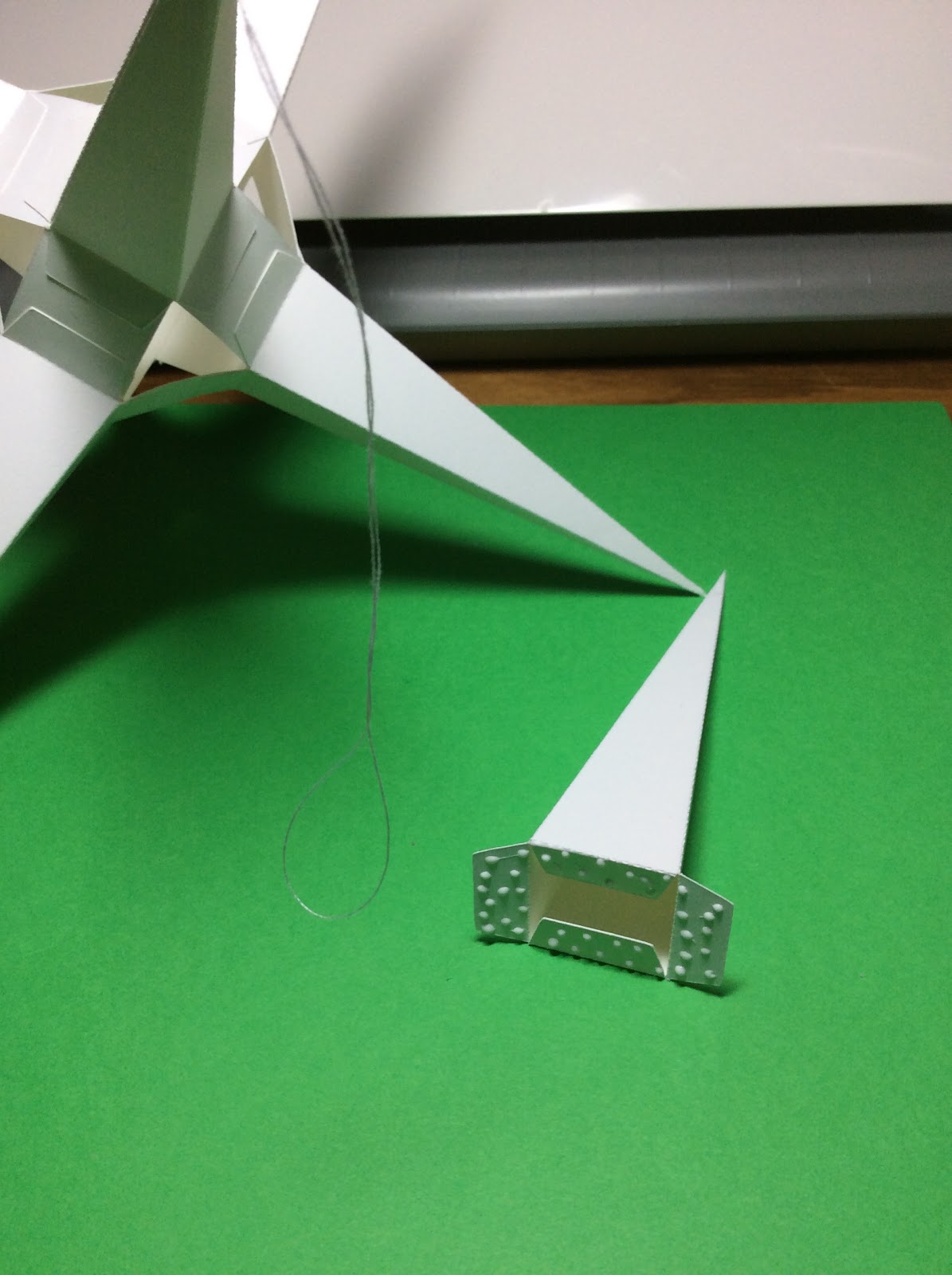

Using the large isosceles pyramid, bend two of the tabs inward and the opposite tabs outward. Apply glue to the tabs as shown above.

The two outward tabs will be bent under the small rhombicuboctahedron.  In other words, every spot where there is a square next to an open triangle, you will use this method of attaching the large isosceles pyramid. Notice in the above photo, the tabs are attached inside the small rhombicuboctahedron.   Repeat until all of the large isosceles pyramids are attached.

Here is a photo of all the large isosceles pyramids attached. The only thing left to do is attach the small isosceles triangular pyramids.

Apply glue to the isosceles triangular pyramid tabs and insert it into the open equalateral triangle. Repeat for the other isosceles triangular pyramids.

Completed Moravian Star



After completing the Moravian Star, you might like to try my next model, the Bethlehem Star. https://papercraftetc.blogspot.com/2019/11/a-stem-project-bethlehem-star-model-and.html  It uses the same construction as the Moravian Star but the pyramid sizes vary.
