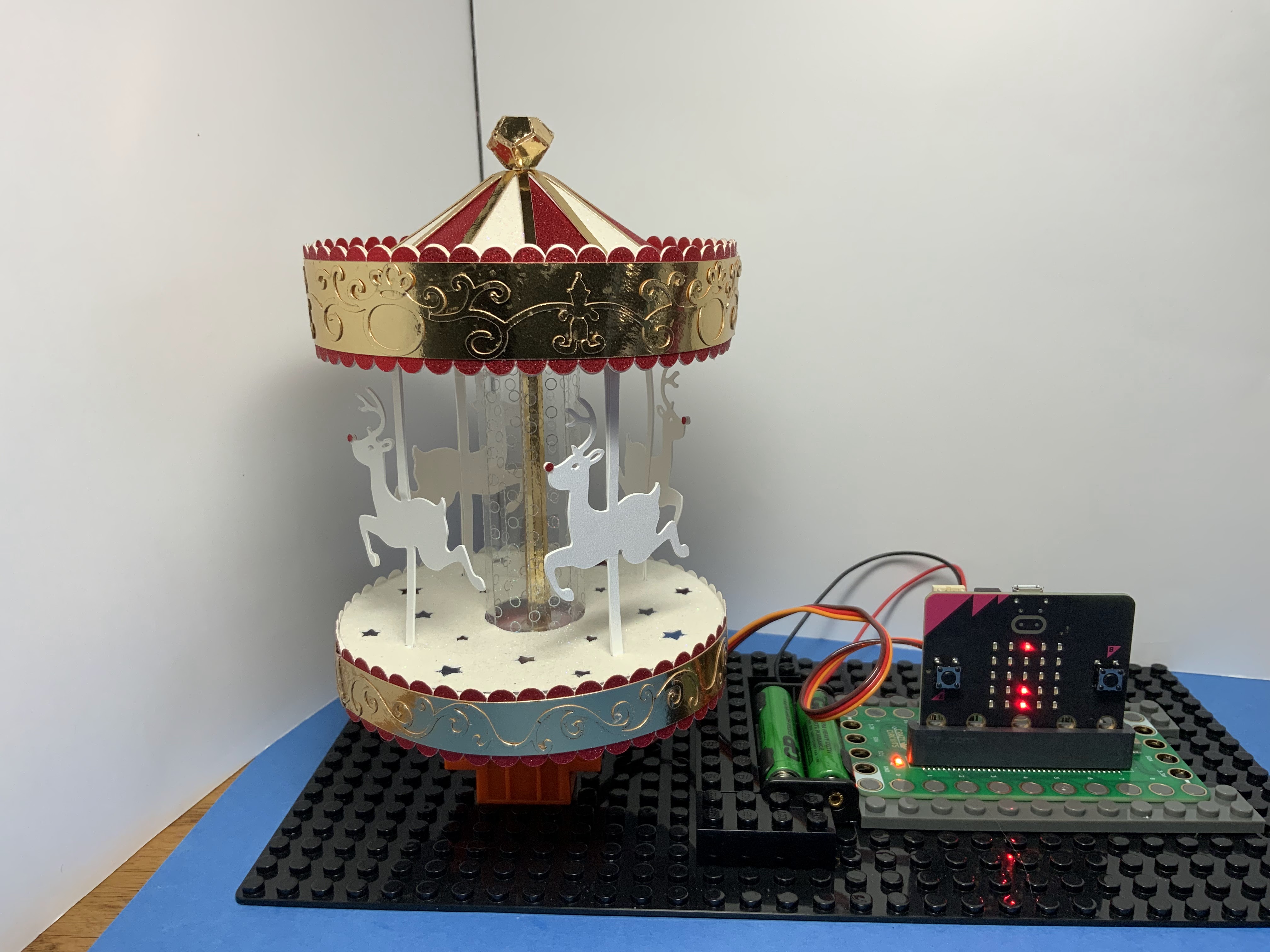

The program does a few things. It streams the message "Happy Holidays" across the LED display. When the left button is pressed, the song "Deck the Halls" plays and the carousel rotates clockwise. When the right button is pressed, the carousel stops rotating.
Connecting the Microbit to the Brown Dog Bit Board

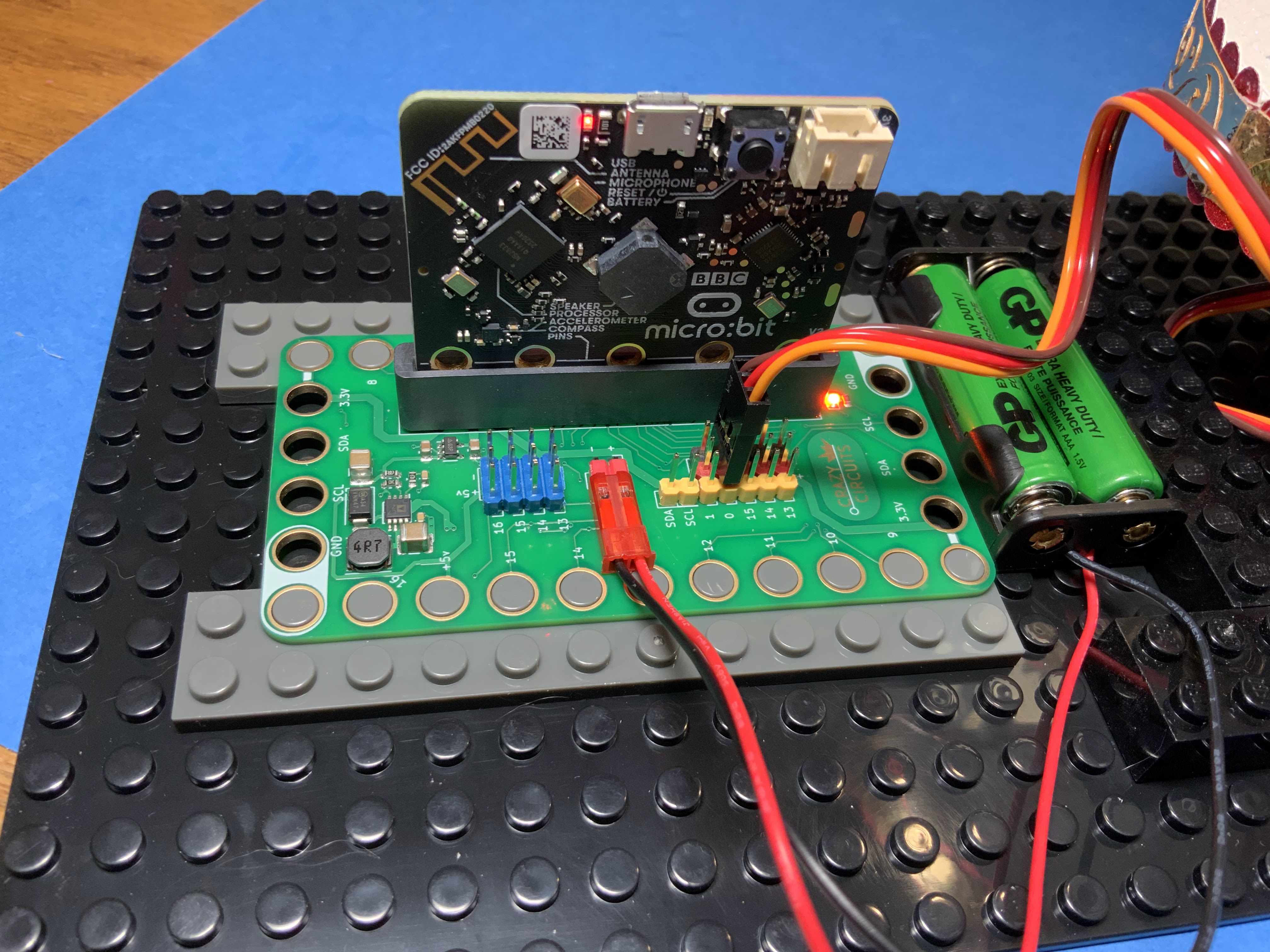

The Microbit is connected to the Brown Dog Crazy Circuits Bit Board as shown above.
I boxed in the battery power supply with Legos and added a glue dot to the bottom of the battery compartment so that the battery would not move around.
The battery is connected with the red and black wires to the bit board at the red connector, shown above in the middle of the photo. The red wire is positive and the black wire is negative.
The continuous rotation 360 degree servo is connected via the orange, red and brown wires to the bit board at the location of pin 0. The colors of the servo wires correspond to the colors of the pins. Check to make sure the servo works before continuing to attach the carousel.
Connecting the Carousel to the Continuous Rotation 360 Degree Servo
I attached the carousel with a Lego axle and two gears to add stability at the point where the axle and the servo meet. There is a little wobble as the carousel rotates. The wobble is more apparent at higher speeds. At a 50% running rate, the wobble is very slight.
Rudolph The Red Nose Reindeer and Frosty The Snowman characters are placed over a red LED light. The supporting box for the Microbit was cut with the Silhouette paper cutter.
When the Micobit is activated by pressing the left button, a song is played. When the right button is pressed, a different song is played. Can you guess which songs are going to be played?
Here is a video of the Microbit in action.
A Microbit is an easy and inexpensive way of learning to program. I purchased my Mictobit at Microcenter for $22. I think the Microbit is a bargain because of all of its programming capabilities that are packed into this little device. The Microbit has an LED display, it can emit sound, it has light and temperature sensors, radio and Bluetooth sensors to transmit between two Microbits and two programmable buttons to name a few features.
The Microbit website, https://microbit.org has tutorials to help you learn programming using Microsoft MakeCode for beginners. Python and Scratch programming languages are also available to program the Microbit for more advanced learners.
Crease the box as shown above. Apply glue to the two tabs at the left side of the photo.
Adhere the tabs and apply glue to the two small tabs as shown above.
Insert and adhere the small tabs into the bottom of the box. Apply glue to the side of the Microbit holder tabs.
Adhere the Microbit holder tabs to the inside of the box.
Insert the Microbit by wrapping the box around the Microbit's buttons.
Embellish with a paper candy cane.
Embellish the Snowman and Reindeer as shown above.
LED Light Instructions
Using a red LED light, (please note, the longer wire is positive), I made a holder for this LED light by using the following instructions in this YouTube video. https://youtu.be/jmsu__UYTl8?si=dS8hfbSRW0h7QUfb
Assembly Instructions
Once the red LED holder was made, I used two alligator clips; a red alligator clip was used for connecting the positive side of the light to pin 0 at the bottom of the Microbit .
A black alligator clip was used for the connecting the ground side of the light to pin GND at the bottom of the Microbit. In the photo above, alligator clips are attached at the back side of the Microbit.
Programming Instructions
Here is the program that I used to operate my Microbit, https://makecode.microbit.org/S41653-41913-44926-20051 The program does a few things. It streams the message "Merry Christmas" across the LED display. The red LED blinks on and off. When the left button is pressed, the song "Rudolph the Red Nose Reindeer" plays. When the right button is pressed, the song "Frosty the Snowman" plays.
Side View

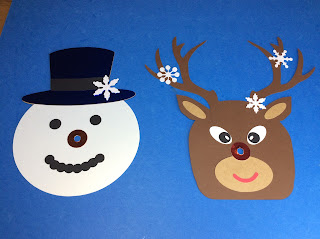

When playing the left button on the Microbit, use the reindeer embellishment for the "Rudolph the Red Nose Reindeer" song. When playing the right button, use the snowman embellishment for the "Frosty the Snowman" song.
A Microbit Battery Holder With Accessibility For Edge Connectors

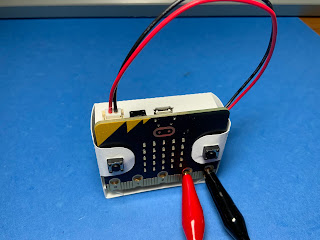

On the Microbit website, they feature a cardboard battery holder for the Microbit. https://microbit.org/get-started/user-guide/battery-pack-holder/ While it is a great design to hold the battery pack. I had issues with the bottom edge connectors. I added two alligator clips to the ground and 3v ports. When I stood the battery holder upright up, standing on the bottom edge of the battery holder, the Microbit tilted to the left side.

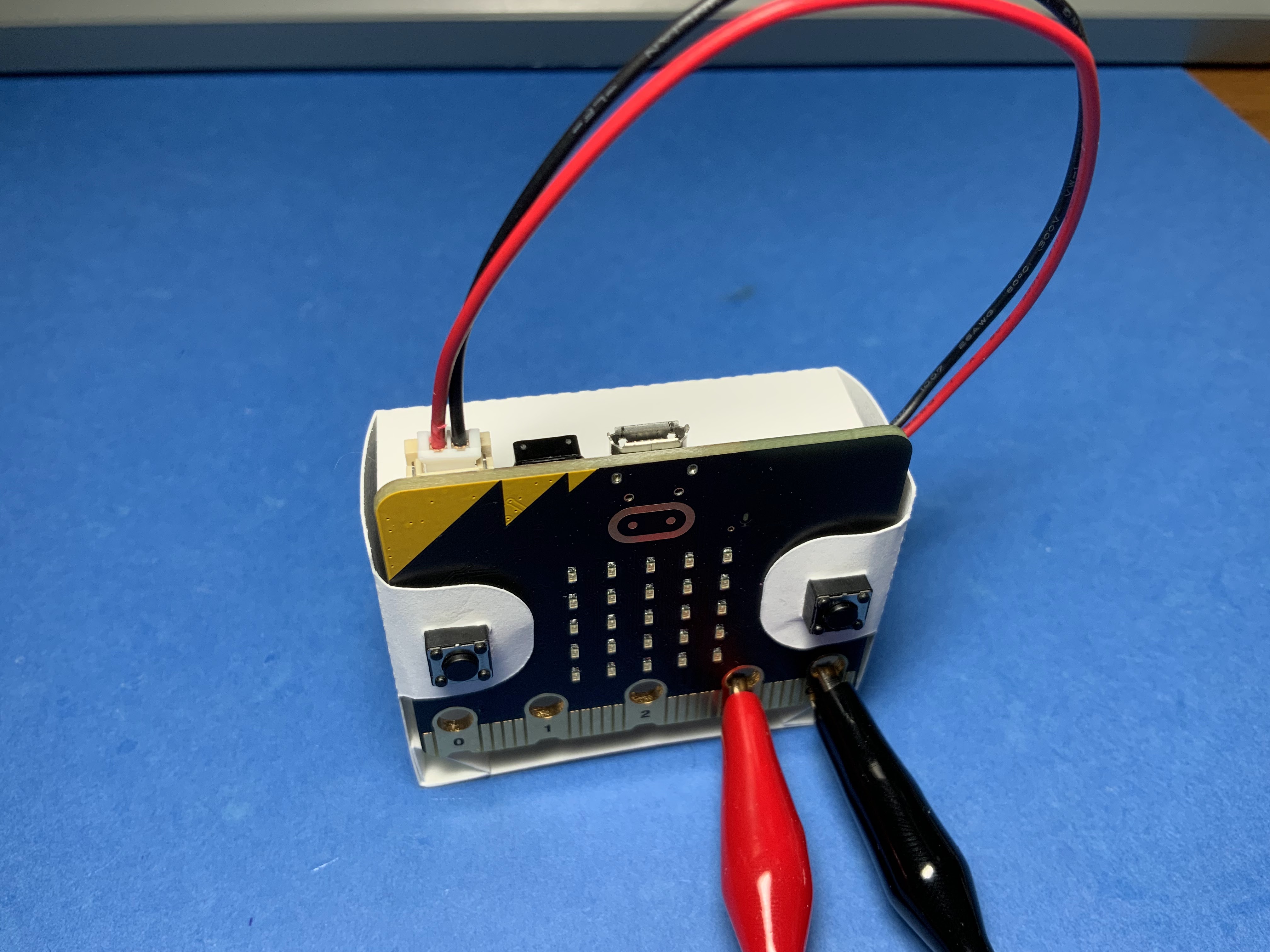

My goal was to create a Microbit battery holder that would stand up at a right angle to the table for easy front viewing without the issue of accessing the bottom edge connectors. In my design, I used the original Microbit battery holder design and I modified it. I extended the sides of the battery holder and added a triangular corner to each side. I made triangles at the bottom corners because triangles are the sturdiest structure. It is a shape that can not be distorted by stress because the load is distributed evenly across all three sides of the triangle. The result is a corner that will not collapse under the weight of the Microbit. If you exert pressure at the top of this holder, the side will bend but not the triangular corners.
Here is the PDF. I used 65 lb. white cardstock for the design.
